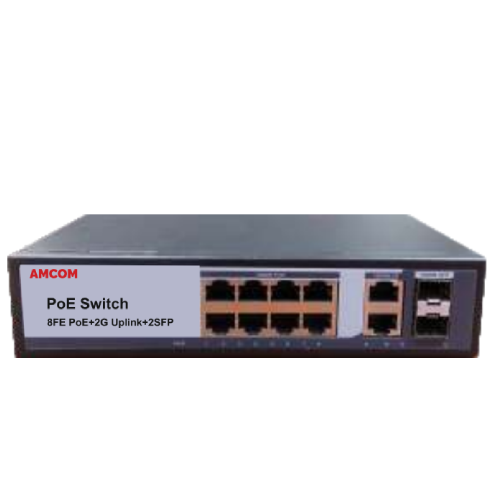

8+2+2 Gigabit PoE Switch

8+2+2 Gigabit PoE Switch

8+2+2 Gigabit PoE Switch - Image 2

8+2+2 Gigabit PoE Switch - Image 2

Model No: HW-01C12V-I

8+2+2 Gigabit PoE Switch

( 0 out of 5 )

8*1000Mbps PoE ports, 2*1000Mbps Ethernet port, 2 SFP slot Support IEEE802.3af/at
Support restrain network storm,
All port supported by MDI/MDIX auto flip & self-negotiation
Built-in power supply
Maximum power of single PoE port: 30 W
Maximum PoE power: 150W
Adopts store-and-forward architecture
Fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall Support lightning protection 4KV

Categories: 4/8 PORT POE SWITCH, Switch

Introduction

Main Features :

Power Adapter Voltage Consumption
PoE Ethernet Port
Ethernet Port, SFP Port
Transmission Distance
Transmission Medium
Network Standard
Switching Capacity
Packet Buffer Memory
Throughput
MAC Table
Packet Forwarding rate
PoE Standard
PoE Power Supply
PoE Power
Port Function
LED Indicator
Working temperature
Relative Humidity
Storage temperature
Dimension(L*W*H)
Color & Weight

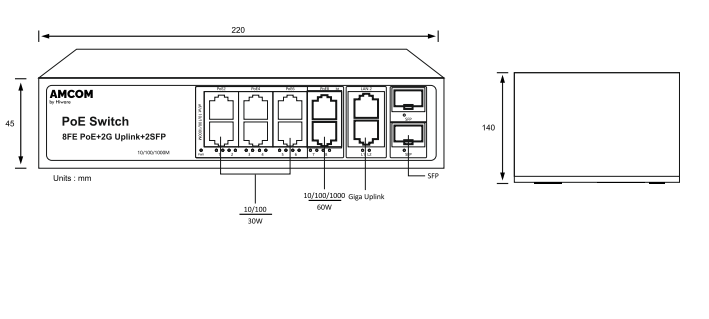

Dimension

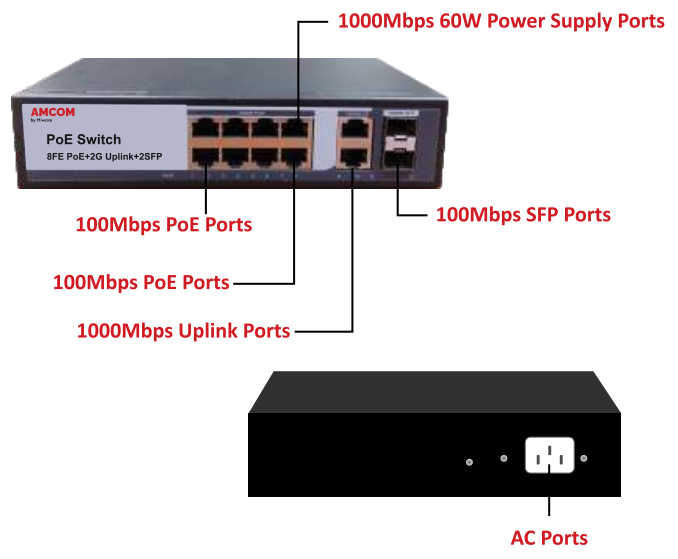

Port Description

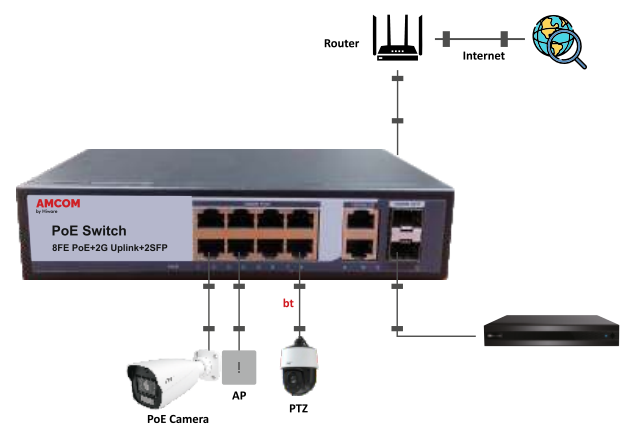

Typical Application

Specification

AC 110V-240V 150W(52V 2.88A)
PoE Ethernet Port
Uplink port:1000Mbps, 2*SFP Plot
18 Port:1000M: 0~ 100m / Uplink Port:0-100m
Cat5/5e/6 standard network cable
IEEE802.3/802.3u, IEEE802.3x, IEEE802.ab
20Gbps
1Mbits
14.88Mbps
2K
10Mbps:14880pps/port, 100Mbps: 148800pps/port,
1000Mbps: 1488000pps/port
IEEE802.3af/at1/2(+), 4/5(+),3/6(-), 7/8(-)
af 15.4w,at=30w for each port
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and
back pressure for Half-duplex mode
Power indicator: keep bright when connect power Network indicator: Flicker when there is data transmission 0
C°-55 C
20-95%
-20°C-70°C
220mm*140mm*45mm
Black 2.5Kg

Accessories

Download

HW-01C12V-I-1.pdf
