24+2+2 Gigabit PoE Switch

24+2+2 Gigabit PoE Switch
24+2+2 Gigabit PoE Switch - Image 2
24+2+2 Gigabit PoE Switch - Image 2
Model No: HW-01C28-V

24+2+2 Gigabit PoE Switch

( 0 out of 5 )
  • 24*10/100/1000Mbps PoE ports, 2*10/100/1000Mbps Uplink Port, 2*1000M SFP slot
  • Support IEEE802.3af/at, Support restrain network storm
  • Support Max Transmission distance up to 100m with PoE Power
  • All port supported by MDI/MDIX auto flip and self-negotiation
  • Support Non-blocking the bandwidth each PoE port can
  • Maximum power of single PoE port: 30 W;
  • Maximum PoE power: 300W;
  • Adopts store-and-forward architecture;
  • Fanless, natural cooling, small, compact and quiet design, Suitable for desktop or wall Support lightning protection 4kV
Categories: ,

Introduction

Main Features :

  • Power Adapter Voltage Consumption
  • PoE Ethernet Port
  • Ethernet Port, SFP Port
  • Transmission Distance
  • Transmission Medium
  • Network Standard
  • Switching Capacity
  • Packet Buffer Memory
  • Throughput
  • MAC Table
  • Packet Forwarding rate
  • PoE Standard
  • PoE Power Supply
  • PoE Power
  • Port Function
  • LED Indicator
  • Working temperature
  • Relative Humidity
  • Storage temperature
  • Dimension(L*W*H)
  • Color & Weight

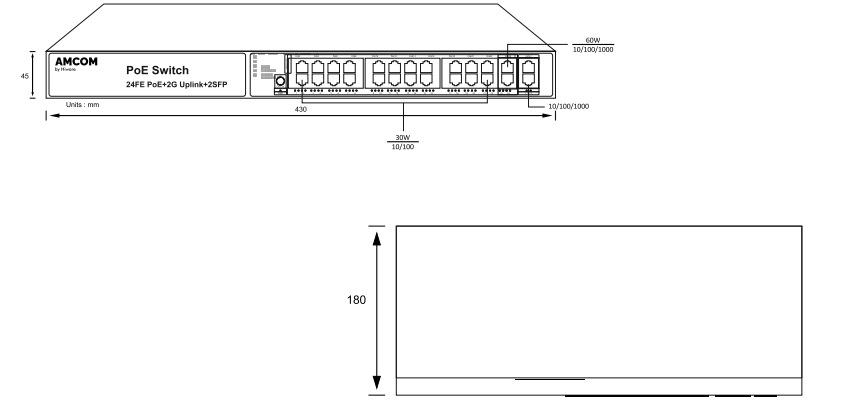

Dimension

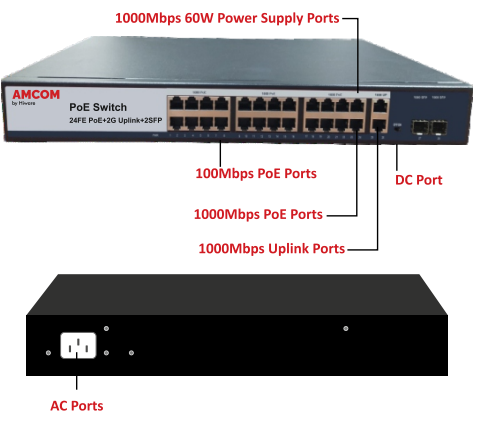

Port Description

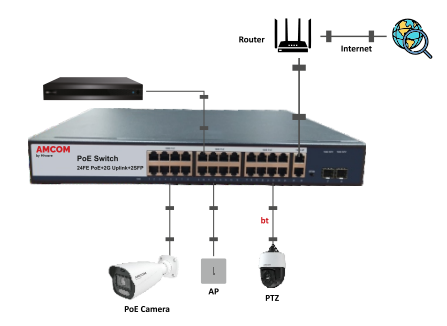

Typical Application



Specification

  • AC 110V-240V
  • 300W(52V, 5.76A)
  • 1-24 port:10/100/1000Mbps
  • 2*Uplink port: 1000Mbps, 2*SFP Port: 1000Mbps
  • 100/1000Mbps:0-100m, Uplink Port:0-80m
  • Cat5/5e/6 standard network cable
  • A
  • by H
  • IEEE802.3/802.3u, IEEE802.3x, IEEE802.ab
  • 56Gbps
  • 4Mbits
  • 43.34Mbps
  • 8K
  • 10Mbps:14880pps/port, 100Mbps: 148800pps/port,
  • 1000Mbps: 1488000pps/port
  • IEEE802.3af/at
  • End-Span 1/2(+), 3/6(-), 4/5(+), 7/8(-)
  • af-15.4w,at=30w for each port
  • Power priority mechanism, fast and forward,
  • MAC automatic learning and aging IEEE802.3X Full-duplex and
  • mode and back pressure for Half-duplex mode
  • LINK/ACT 100Mbps: PoE Status Indicator, Power Indicator, Extender
  • 0°C-55°C
  • 20-95%
  • -20°C-70°C
  • 440mm*192mm*45mm
  • Black, 5.68Kg

Accessories

Download

HW-01C28-V-1.pdf
